Simple and reliable flat deck heat rejection systems featuring vertically discharged airflow for efficient operation and flexible installation across a wide range of condenser and fluid cooler applications.
Products
Fluid Coolers
Engineered for closed-loop cooling and fluid temperature control, Colmac Coil fluid coolers and warmers support a wide range of industrial, HVAC, and process applications.
Available in flat deck, horizontal airflow, V-bank, and adiabatic configurations, these systems are designed to balance thermal performance, installation flexibility, and long-term operational demands. Flexible fan arrangements, configurable materials, and custom layouts allow each unit to be optimized for sound requirements, water conservation, energy usage, and challenging operating environments.
Fan Options

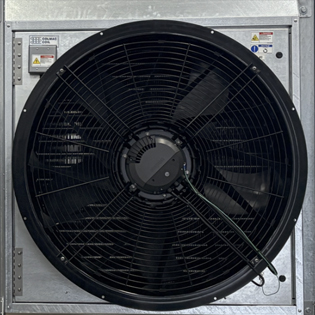

EC Fans
High-efficiency EC fans with integrated speed controllers available in multiple sizes and performance configurations. Composite fan blades standard. Power range from 2.1 kW - 3.5 kW.

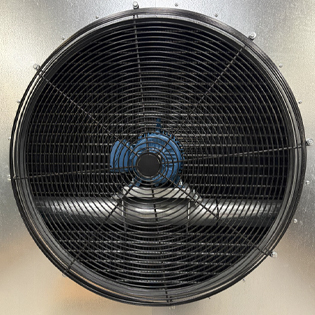

AC Fans
Robust and versatile AC fan systems with motor sizes ranging from 1.5 hp to 5 hp and fan diameters from 30" to 48". Available with composite or aluminum fan blades.
Materials of Construction
Tube Material
304 stainless steel tubing
316 stainless steel tubing
Fin Material
Aluminum
Epoxy coated aluminum
304 stainless steel
Casing Material
G-235 galvanized steel
304 stainless steel
316 stainless steel
Features & Upgrades
Fan Speed Controller
Improved energy efficiency and sound control through variable fan operations and system loads.
Control Sensors
Addition of ambient temperature, and leaving fluid pressure sensors to base controller setpoints.
Inlet Air Filters
Available in multiple filtration styles for protection against finer debris like cottonwood and insects, or larger debris like birds and more.
Header and Return Bend Covers
Added protection for piping components and improved unit appearance.
Snow Hood
Protects unit operation in snow and severe weather environments.
Certifications & Warranties
ASME "U" Stamp
ASME Section VIII requirements for pressure-containing equipment
CRN/CSA
Canadian Registration Number (CRN) and CSA certifications available for applications requiring compliance with Canadian pressure vessel and refrigeration equipment regulations
UL 207
UL 207 standards for refrigerant-containing components and accessories, verifying compliance with recognized refrigeration system safety requirements.
Warranty
Colmac Coil warrants its products to be free from defects in materials and workmanship under normal operating conditions. Standard warranty coverage includes repair or replacement of defective components in accordance with Colmac warranty terms. Pressure-bearing stainless steel coil components manufactured in accordance with ASME B31.5 are eligible for extended warranty coverage of up to five years from shipment date.
Unit Configurations
Lorem ipsum dolor sit amet, consectetur adipisicing elit, sed do eiusmod tempor incididunt ut labore et dolore magna aliqua. Ut enim ad minim veniam, quis nostrud exercitation ullamco laboris nisi ut aliquip ex ea commodo consequat. Duis aute irure dolor in reprehenderit in voluptate velit esse cillum dolore eu fugiat nulla pariatur.
A+OV Fluid Condenser Configuration
A+OH Fluid Condenser Configuration
Horizontal airflow heat rejection systems designed for applications requiring flexible installation layouts, efficient operation, and reduced height profiles across condenser and fluid cooler applications.
A+V Fluid Condenser Configuration
Compact twin-coil V-bank heat rejection systems engineered to maximize capacity density while reducing installation footprint through side air intake and vertical discharge airflow.
A+VA Fluid Condenser Configuration
Twin-coil adiabatic V-bank heat rejection systems combining dry and wet operation to maximize thermal performance while reducing energy and water consumption.
