The standard A+R is designed for food processing rooms requiring high cooling capacity, effective air distribution, and convenient service access.
Typical installation height: approximately 30–50 inches
Capacity: 3–25 TR
Fans: 1–8
Products
A+ Series® Air Coolers - Industrial Air Coolers - A+R
Above-Rail Evaporator

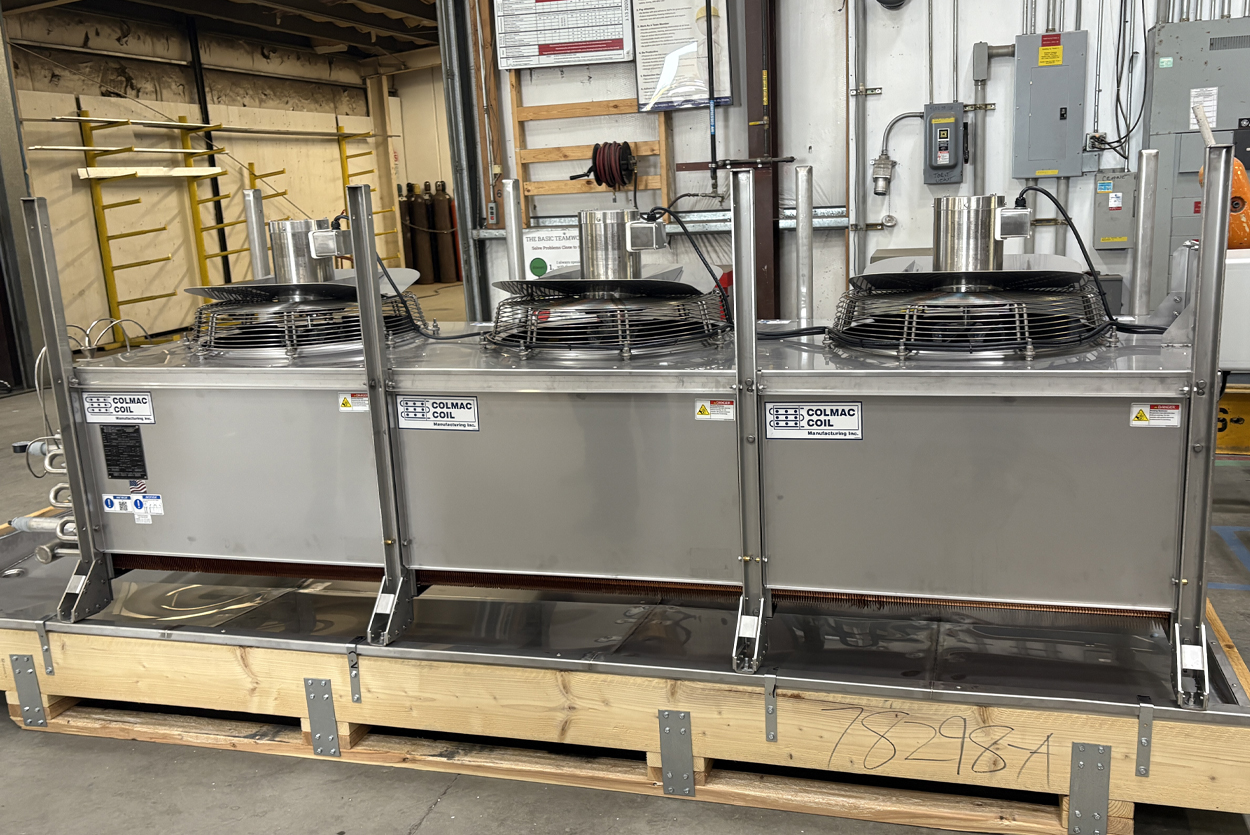

Designed specifically for food processing rooms where cleanability, worker comfort, and usable workspace are critical, Colmac Coil A+R Air Coolers use an above-rail configuration to keep refrigeration equipment overhead while providing effective air distribution throughout the conditioned space.
Available in both standard and low-profile configurations, the A+R combines hygienic materials, full access to the coil core, low installation heights, and optional Clean-In-Place technology to support demanding food processing and washdown environments.
Standard A+R units are available in capacities from 3 to 25 TR with 1–8 fan configurations.
The A+R is purpose-built for refrigerated processing spaces where sanitation requirements, employee comfort, equipment access, and available workspace all influence evaporator design.
Key Benefits
Above-rail configuration maximizes usable processing space
Standard and low-profile configurations available
Capacity range from 3–25 TR
1–8 fan configurations
Hygienic stainless steel construction options
Full-coverage insulated drain pan
Hinged access panels on both sides
Optional Clean-In-Place piping
Passivated welds for hygienic applications
Washdown-duty motors available

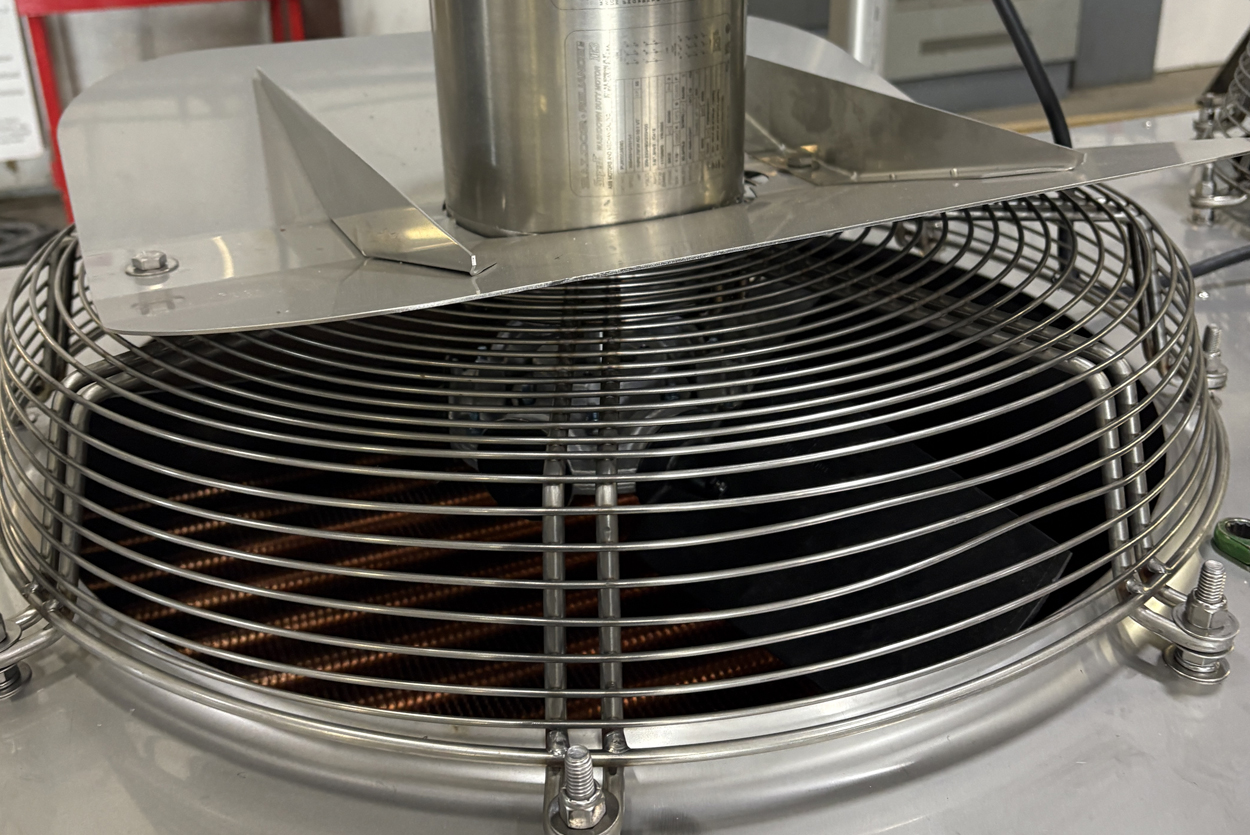

Fan speeds optimized for reduced sound pressure
Engineered for effective air coverage throughout occupied processing areas
Clean-In-Place (CIP)

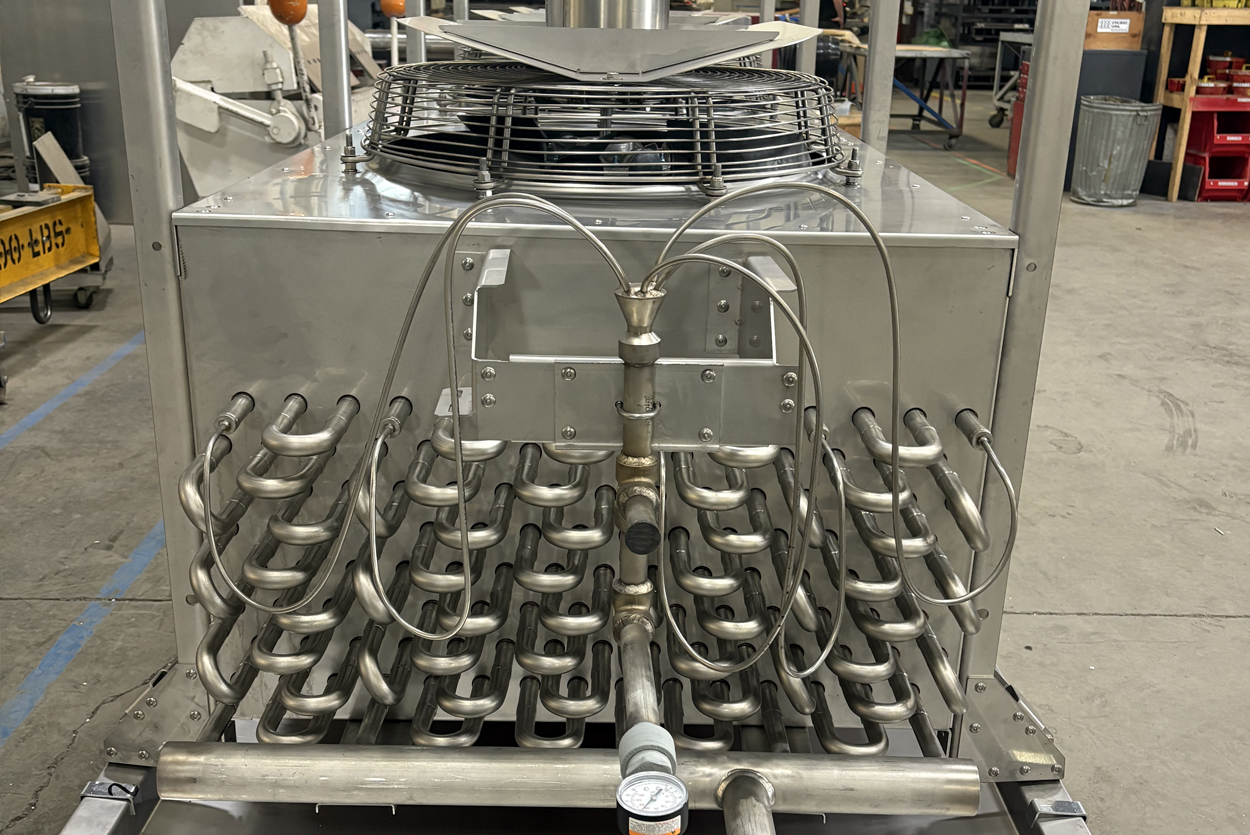

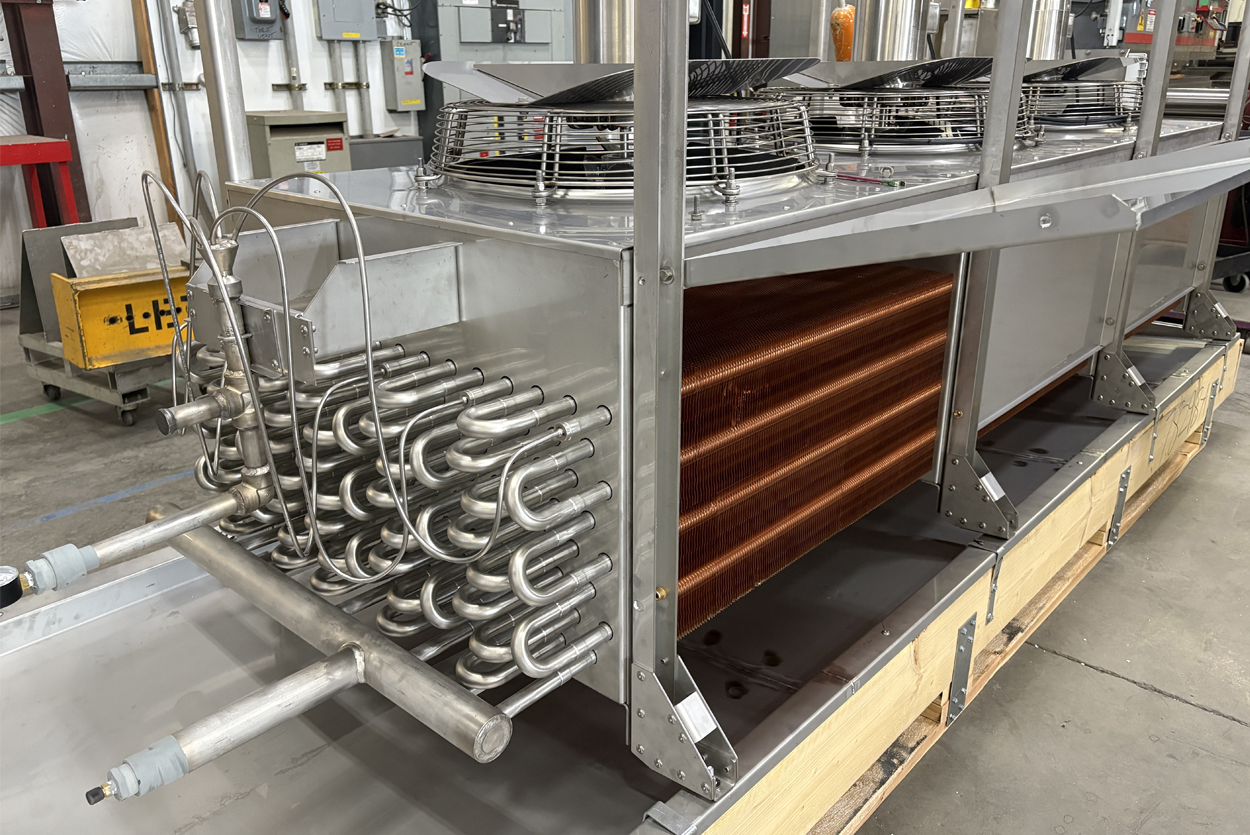

Optional Clean-In-Place piping provides automated spray coverage across the coil core, helping simplify routine cleaning and improve repeatability.
Benefits of CIP
Provides spray coverage across the coil core
Supports automated and repeatable cleaning procedures
Reduces dependence on manual coil cleaning
Helps improve access to difficult-to-reach coil surfaces
Can provide water defrost in rooms operating above freezing
Supports sanitation programs in food processing facilities
Materials of Construction
Tube Material
Aluminum
304 stainless steel tubing
316 stainless steel tubing
Fin Material
Aluminum
Epoxy coated aluminum
304 stainless steel
316 stainless steel
Casing Material
G-235 galvanized steel
304 stainless steel
316 stainless steel
Defrost Options
Air
Hot Gas
Electric
Certifications & Warranties
ASME "U" Stamp
ASME Section VIII requirements for pressure-containing equipment
CRN/CSA
Canadian Registration Number (CRN) and CSA certifications available for applications requiring compliance with Canadian pressure vessel and refrigeration equipment regulations
UL 207
UL 207 standards for refrigerant-containing components and accessories, verifying compliance with recognized refrigeration system safety requirements.
Warranty
Colmac Coil warrants its products to be free from defects in materials and workmanship under normal operating conditions. Standard warranty coverage includes repair or replacement of defective components in accordance with Colmac warranty terms. Pressure-bearing stainless steel coil components manufactured in accordance with ASME B31.5 are eligible for extended warranty coverage of up to five years from shipment date.
Applications
Cold Storage Warehouses
Food Processing
Meat & Poultry Processing
Seafood Processing
Refrigerated Distribution Centers
Prepared Foods
Blast Freezers
Blast Chillers
Produce Processing
Industrial Refrigeration Facilities
Standard and Low-Profile Configurations
A+R Standard
A+R Low Profile
Developed for processing spaces with extremely limited overhead clearance, the A+R Low Profile reduces overall installation height while maintaining the hygienic above-rail concept.
Installation height: approximately 20–30 inches
Fan rows: 2–6
The low-profile configuration uses 1/4 hp bolted 48-frame motors and is available for applications where minimizing equipment height is the primary design constraint.
